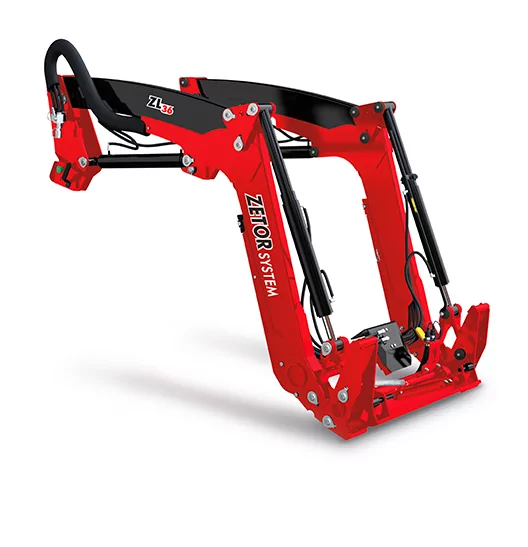

ZL series (hobby)
The design of the loader beam means that the hobby ZL loader matches today’s modern tractors in a unique manner. The fact that it has the lowest knee placement on the market also means that it has superb side visibility. No tools are needed to disconnect from your ZL loader. In addition, the shaped moulds give ZL loaders excellent torsional rigidity and strength. The solid, smooth and integrated support legs further simplify connection and disconnection.

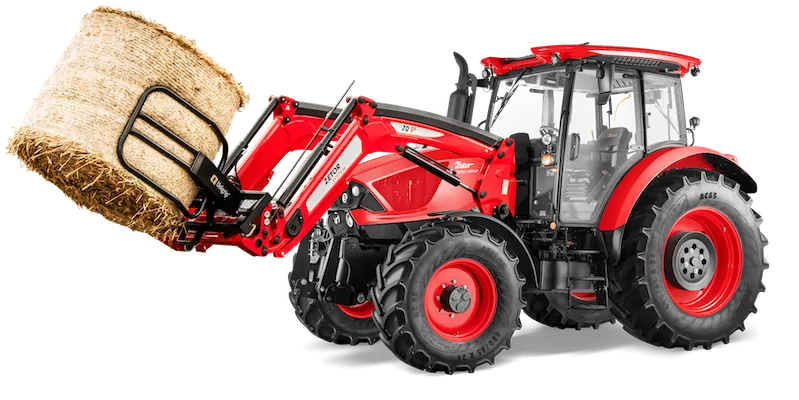

ZQ series
Designed to deliver the best possible productivity and user benefits over along periodi of time. The innovative range of professional front loaders, called ZQ, provides farmers with extended durability, better visibility from the cabin, greater lift height, better system rigidity, wider selection of accessories, such as lights or a smart display, showing the weight of the load and the position of the loader.
| L 9.5 | L 11 | L 13 | L 15 | ||
|---|---|---|---|---|---|
| Max Height at implement pivot | 2.90m/9'5ft | 3.35m/11'ft | 3.95m/11'ft | 4.25m/14'ft | |
| Max Height under horizontal bucket | (1) | 2.65m/8'8ft | 3.10m/10'2ft | 3.70m/12'2ft | 4.00m/13'2ft |
| Max Height under dumped General Purpose Bucket | (2) | 2.20m/7'2ft | 2.75m/9'ft | 3.00m/10'ft | N/A |
| Max Height under dumped Booster Bucket Construction | (2) | 3.30m/10'8ft | 3.85m/12'7ft | 4.30m/14'1ft | N/A |
| Max Height under dumped Booster Bucket High Volume | (2) | N/A | N/A | 4.60m/15'ft | 5.10m/16'6ft |
| Digging Depth | (3) | 0.15m/6''in | 0.15m/6''in | 0.25m/10''in | 0.25m/5''in |
| Dumping angle at maximum height (Standard Bucket) | (4) | 60 deg | 56 deg | 52 deg | 52 deg |
| Dumping angle at ground level (Standard Bucket) | (5) | 42 deg | 45 deg | 48 deg | 48 deg |
| Payload (General Purpose Bucket with Soil) | 800kg | 950kg | 1250kg | 800kg |
