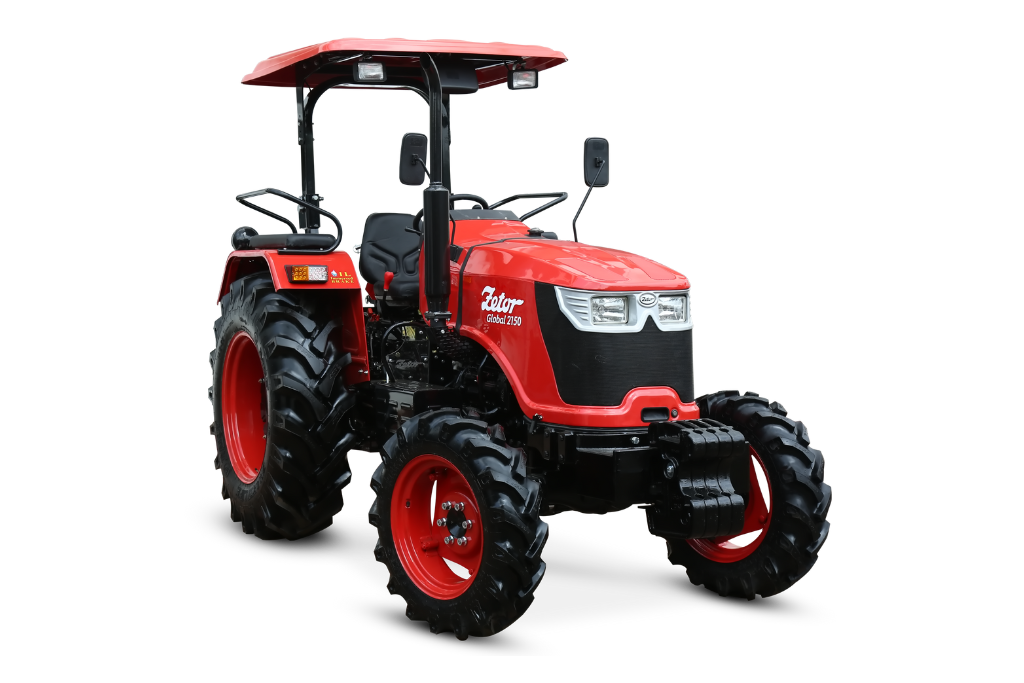

Zetor Global Tractors are easy to use tractors with easy maintenance and high reliability that are ready to be used all over the world. Tractors from GLOBAL RANGE were developed to work in the most difficult conditions at low operating cost and with minimum maintenance.
Engine
Tractors are equipped with durable and proven engines with three or four cylinders and cover power range from 39 to 90 HP. Designed for easy maintenance and low operating costs.
Transmission
The tractors are offered with various type of transmissions depending on model, 8/2 Sliding Mesh or 8/8 Partial Synchromesh or 12+12 Syn-chromesh in 2WD and 4WD options.
Hydraulics
All models employ mechanically regulated hydraulics, featuring two lever, automatic Draft and Position control with mix control.
Design
Simple and smart design enables good access to all important parts and their easy maintenance. Tractors are optionally equipped with canopy with ROPS for operator protection.
| Parameters | Units | Global 2150 |
|---|---|---|
| Drive | 2WD or 4WD | 2WD | 4 WD |
| HP | 50 HP | |
| Emission Norm | Trem 3A | |
| Engine Type | 4 Stroke Water Cooled Diesel Engine | |
| No. of Cylinders | 3 | |
| Bore/Stroke | mm | 105/120 |
| Cubic Capacity | cc | 3117 |
| Max Torque | Nm | 188 |
| Rated Speed | rpm | 2200 |
| Air Cleaner | Dry Type | |
| Clutch System | Dual | |
| Transmission Name | Carraro | |
| Gear Box Type (Sliding/Constant/Syncro Mesh) | Collar Shift + Synchro Fwd Rev | |
| No. of Gear Speeds | 8+8 | |
| Fuel Tank Capacity | L | 55 |
| Hyd. Lift Pump Capacity | LPM | 30.26 |
| Lifting Capacity | kg | 1500 |
| Diff Lock | Foot Operated | |
| Front Tyre Size | inch | 7.5x16 | 8.0 x 18/8.3 x 20 |
| Front track width | mm | 1390 | 1320 |
| Rear track width | mm | 1346 |
| Total Tractor Length | mm | 3560 |
| Total Tractor Width | mm | 1728 |
| Tractor Height - upto steering | mm | 1735 |
| Min. Ground Clearance | mm | 435 |
| Weight of Tractor without ballast weight | kg | 1990kg | 2090kg |
| PTO Speed | 540 & 540E | |
| Live or Ground PTO Options | PTO Live | |
| Steering Type | Power | |
| Steering Pump Capacity | LPM | 18.18 |
| Brake Type | Wet Brake | |
| Brake Actuation | Foot Operated | |
| Parking Brake Actuation | Mechanical | |
| Three Point Linkage | Cat-1 & Cat-2 | |
| Accessories | Rear Weight - 36 kgs (2 nos.) | |
| Front Weight - 20 kgs (4 nos.) | ||
| Swinging Drawbar/Rotating Toe Hook | ||
| Rops/Canopy |
